State-based Call Handling

State-based call handling is a structured approach to managing incoming calls based on predefined user availability states within a RingCentral RingEX account. Each user extension has four primary conditional states, and each state can be customized with specific rules to automate call routing behaviors according to their schedule and presence.

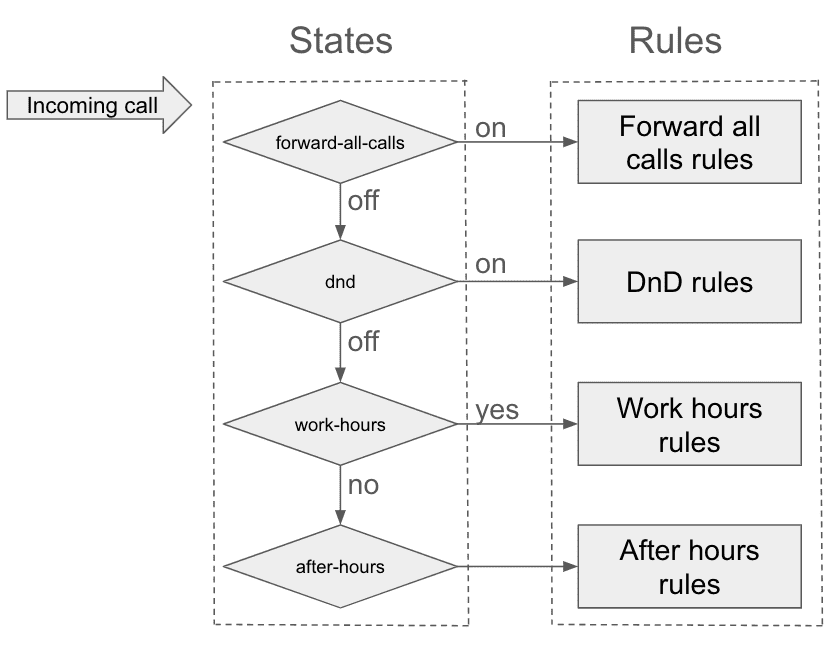

The call handling hierarchy is described in the following diagram:

User state-based call handling hierarchy

The 'after-hours' state is automatically created when the 'work-hours' state schedule is configured for specific days and times. And when the 'work-hours' state is rescheduled to 24/7, the system will automatically delete the 'after-hours' state.

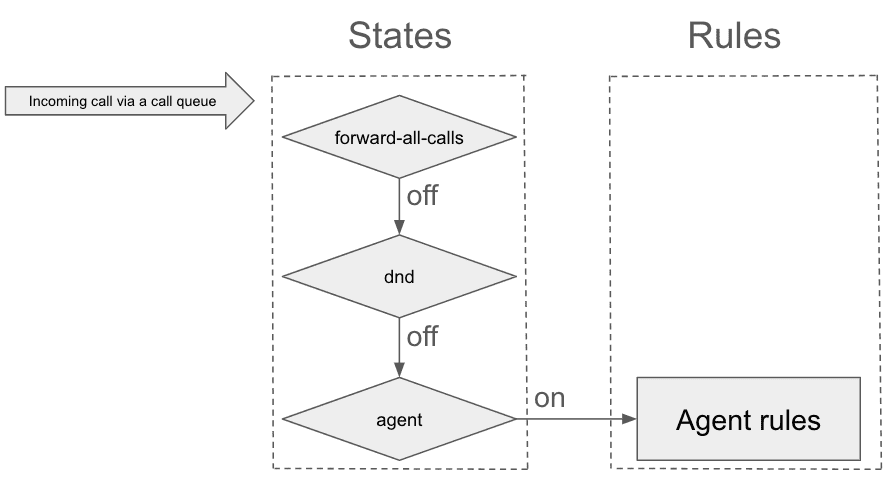

Additionally, when a user extension is added to a call queue, the system automatically generates the ‘agent’ state, which manages how they receive calls from the queue based on their availability. By default, the agent state inherits the schedule conditions and the ring settings from the user’s ‘work-hours’ state.

To retrieve a user's state scheduling conditions, use the API below:

GET /restapi/v2/accounts/~/extensions/~/comm-handling/states

User Call Handling Rules

A call handling rule is a set of predefined configurations that determine how incoming calls are dispatched. User call handling rules are categorized into two main groups:

Call Ringing Rules - Applied when the user is available to answer incoming calls. This category includes the following settings:

• Welcome Greeting – Defines how a caller is greeted when a call is received, while connecting and being connected.
• Ring Settings – Defines how the call rings before being answered or redirected.

Call Terminating Rules - Applied when the user is unavailable, allowing the system to automatically dispatch the call. This category includes the following settings:

• Send to Voicemail – Plays the voicemail greeting and routes the call to the user's voicemail box.
• Forward the Call – Redirects the incoming call to a specified destination, which can be:
  • Any phone number.
  • Any user extension and call queue extension within the same account.
• Play Announcement – Plays an announcement message and then disconnects the call.

There are two types of call terminating rules: immediate terminating rules and "no one answers" terminating rules. While the configuration options for both are the same, they must be set separately for each applicable scenario. The table below outlines which call handling states can be configured with the appropriate terminating rules:

Forward-All-Calls State and Rules

The ‘Forward-All-Calls’ state is the top priority for handling incoming calls. This state is suitable for a user's long term unavailability such as when a user is on vacation or when a user knows in advance when he or she will be unavailable and when he or she will become available to handle incoming calls.

If a user’s ‘forward-all-calls’ state is active,

• all direct incoming calls to the user will be dispatched according to the predefined dispatching rule of the state.
• all call queue calls will not be routed to the user. Instead, the system will route the call to the next agent on the call queue.

The default state schedule condition is daily 24 hours.

"state": {
    "id": "forward-all-calls",
    "displayName": "Forward all calls",
    "conditions": [ {
      "schedule": {
        "triggers": [ {
          "triggerType": "Daily",
          "startTime": "00:00:00",
          "endTime": "23:59:59"
        } ]
      },
      "type": "Schedule"
    } ]
  }

The schedule condition can be set for a specific time period, defined by the 'startDateTime' and 'endDateTime' values.

"state" : {
    "id" : "forward-all-calls",
    "displayName" : "Forward all calls",
    "conditions" : [ {
      "schedule" : {
        "triggers" : [ {
          "triggerType" : "Range",
          "ranges" : [ {
            "startDateTime" : "2025-01-06T11:00:00",
            "endDateTime" : "2025-01-07T11:00:00"
          } ]
        } ]
      },
      "type" : "Schedule"
    } ]
  }

To read the ‘forward-all-calls’ state's schedule, call the following API:

GET /restapi/v2/accounts/~/extensions/~/comm-handling/states/forward-all-calls

To set a schedule for the ‘forward-all-calls’ state, call the following API with appropriate parameters

PATCH /restapi/v2/accounts/~/extensions/~/comm-handling/states/forward-all-calls

To read the ‘forward-all-calls’ state's schedule and rule, call the following API:

GET /restapi/v2/accounts/~/extensions/~/comm-handling/voice/state-rules/forward-all-calls

To change the 'forward-all-call' rule configurations, call the following API with appropriate parameters:

PATCH /restapi/v2/accounts/~/extensions/~/comm-handling/voice/state-rules/forward-all-calls

The "Forward-All-Calls" state can only be configured with a terminating rule, which determines how incoming calls are dispatched. The available dispatching methods include:

• Send to Voicemail
• Forward the Call
• Play Announcement

Do-not-Disturb State and Rules

The "Do-Not-Disturb" (‘dnd’) state has the second-highest priority for handling incoming calls, following the "Forward All Calls" state. This call-handling state is linked to the user's presence statuses, dndStatus and dndStatusPersonal.

When the ‘dnd’ state is enabled, the system updates both dndStatus and dndStatusPersonal to "DoNotAcceptAnyCalls". When the ‘dnd’state is disabled, dndStatusPersonal reverts to "TakeAllCalls", while dndStatus reverts to either "TakeAllCalls" or "DoNotAcceptDepartmentCalls" if it was previously set to that status before the ‘dnd’ state was activated.

This state is ideal for situations where a user needs to be temporarily unavailable without a predetermined duration. It allows for flexibility in managing call availability without requiring a set time frame.

Example Use Case:

A customer support agent steps away from their desk unexpectedly to handle an urgent personal matter. Since they are unsure how long they will be unavailable, they activate the "Do not disturb" state. This ensures that incoming calls are automatically redirected according to predefined rules, preventing missed calls or disruptions while they are away.

When a user's 'dnd’ state is active: - All direct incoming calls to the user will be handled based on the state's predefined dispatching rules. - Calls from a call queue will not be routed to the user. Instead, the system will redirect the call to the next available agent in the queue.

The default state schedule condition is set to 24 hours a day, every day, and cannot be modified. This means that this state does not support the scheduling condition at all. It’s either on or off.

"state": {
    "id": "dnd",
    "displayName": "Do not disturb",
    "enabled": false,
    "conditions": [ {
      "schedule": {
        "triggers": [ {
          "triggerType": "Daily",
          "startTime": "00:00:00",
          "endTime": "23:59:59"
        } ]
      },
      "type": "Schedule"
    } ]
  }

The ‘dnd’ state activeness is associated with the user’s “Do not Disturb” presence status. This means that the ‘dnd’ state can be controlled by either the /presence or the API below:

PATCH /restapi/v2/accounts/~/extensions/~/comm-handling/states/dnd

For example:

PATCH /restapi/v2/accounts/~/extensions/~/comm-handling/states/dnd

body { "enabled": true }

The "Do Not Disturb" state can only be configured with a terminating rule, which determines how incoming calls are dispatched. The available dispatching methods include:

• Send to voicemail
• Forward the call
• Play announcement

The 'dnd' state's rules can be retrieved by calling the following API:

GET /restapi/v2/accounts/~/extensions/~/comm-handling/voice/state-rules/dnd

To change the 'dnd' state rule configurations, call the following API with appropriate parameters:

PATCH /restapi/v2/accounts/~/extensions/~/comm-handling/voice/state-rules/dnd

Work-hours State and Rules

The impact of the "work-hours" state is determined by predefined schedule conditions. By default, the schedule is set to 24/7, meaning the user is always available unless customized settings specify otherwise.

Example Use Case:

A sales representative works a standard 9 AM to 5 PM schedule. To ensure calls are only routed to them during working hours, they configure the "work-hours" state to align with their schedule. Outside these hours, the system automatically switches to the "after-hours" state, redirecting calls to voicemail or another designated contact.

Default ‘work-hours’ state schedule:

{
    "id" : "work-hours",
    "enabled": true,
    "displayName" : "Work Hours",
    "conditions" : [ {
      "type" : "Schedule",
      "schedule" : {
        "triggers" : [ {
          "triggerType" : "Daily",
          "startTime" : "00:00:00",
          "endTime" : "23:59:59"
        } ]
      }
    } ]
}

The schedule conditions can be configured to recur on specific weekdays and time periods, defined by the 'weekday', 'startTime', and 'endTime' values.

To read the ‘work-hours’ state's schedule, call the following API:

GET /restapi/v2/accounts/~/extensions/~/comm-handling/states/work-hours

To set a schedule for the ‘work-hours’ state, call the following API with appropriate parameters

PATCH /restapi/v2/accounts/~/extensions/~/comm-handling/states/work-hours

For example:

PATCH  /restapi/v2/accounts/~/extensions/~/comm-handling/states/work-hours

body {
  "conditions": [
    {
      "type": "Schedule",
      "schedule": {
        "triggers": [
          {
            "triggerType": "Weekly",
            "ranges": {
              "monday": [{
                 "startTime": "09:00:00",
                 "endTime": "16:00:00"
              }],
              "tuesday": [ {
                 "startTime": "12:00:00",
                 "endTime": "18:00:00"
              }],
              "wednesday": [{
                 "startTime": "08:00:00",
                 "endTime": "16:00:00"
              }],
              "thursday": [{
                 "startTime": "08:00:00",
                 "endTime": "16:00:00"
              }],
              "friday": [{
                  "startTime": "08:00:00",
                  "endTime": "12:00:00"
              }]
            }
          }
        ]
      }
    }
  ]
}

The 'work-hours state can have the following call ringing rules:

• Welcome greeting
• Ring settings

The 'work-hours state can have one of the following terminating methods:

• Send to voicemail
• Forward the call
• Play announcement

The ‘work-hours’ state rule configurations can be retrieved by calling the following API:

GET /restapi/v2/accounts/~/extensions/~/comm-handling/voice/state-rules/work-hours

To change the rule configurations, call the following API:

PATCH /restapi/v2/accounts/~/extensions/~/comm-handling/voice/state-rules/work-hours

After-Hours State and Rules

The "after-hours" state is automatically created by the system when the "work-hours" state is not set to a 24/7 schedule.

The schedule for the "after-hours" state is the inverse of the "work-hours" schedule. For example, if work hours are set from Monday to Friday, 8 AM to 4 PM, then after-hours will be from 4 PM to 8 AM on weekdays and from 12:00 AM to 11:59 PM on weekends.

The ‘after-hours’ state schedule data:

{
  "id": "after-hours",
  "enabled": true,
  "displayName": "After Hours",
  "conditions": []
}

The "After-Hours" state determines how incoming calls are managed outside of scheduled work hours. It includes the following ringing rules and terminating methods:

The 'after-hours state can have the following call ringing rules:

• Ring Devices – The user remains available during after-hours and can receive calls.
  • Welcome greeting – A greeting played when a call is received.
  • Ring settings – Defines how the call rings before being answered or redirected.
  • "No one answer"

The 'after-hours state can have one of the following terminating methods:

• Send to Voicemail
• Forward the Call
• Play Announcement

The ‘after-hours’ state rule configurations can be retrieved by calling the following API;

GET /restapi/v2/accounts/~/extensions/~/comm-handling/voice/state-rules/after-hours

To change the rule configurations, call the following API:

PATCH /restapi/v2/accounts/~/extensions/~/comm-handling/voice/state-rules/after-hours

Agent State and Rule

The ‘agent’ state is automatically created by the system when a user extension is added to a call queue.

This state is used to define the agent's availability for receiving incoming calls from call queues. By default, the ‘agent’ state inherits the schedule conditions and ring settings from the user’s ‘work-hours’ state. In this case, the type of the conditions is set to “State”, and the stateId references ‘work-hours’.

Typical ‘agent’ state schedule:

{
  "id": "agent",
  "enabled": true,
  "displayName": "Agent",
  "conditions": [
    {
      "stateId": "work-hours",
      "type": "State",
      "state": {
        "id": "work-hours",
        "displayName": "Work Hours",
        "conditions": [
          {
            "schedule": {
              "triggers": [
                {
                  "triggerType": "Daily",
                  "startTime": "00:00:00",
                  "endTime": "23:59:59"
                }
              ]
            },
            "type": "Schedule"
          }
        ]
      }
    }
  ]
}

To make the “Agent” state schedule independent of the “Work-Hours” state, you can change the Agent state type to “Schedule” and customize the schedule and the ring settings as needed.

{
  "id": "agent",
  "enabled": true,
  "displayName": "Agent",
  "conditions": [
    {
      "type": "Schedule",
      "schedule": {
        "triggers": [{
          "triggerType": "Weekly",
          "ranges": {
            "thursday": [{
              "startTime": "18:00:00",
              "endTime": "23:59:59"
            }],
            "friday": [{
              "startTime": "00:00:00",
              "endTime": "06:00:00"
            }]
           }
         }]
       }
     }
   ]
}

To read the ‘agent’ state's schedule, call the following API:

GET /restapi/v2/accounts/~/extensions/~/comm-handling/states/agent

To set a schedule for the ‘agent’ state, call the following API with appropriate schedule parameters

PATCH /restapi/v2/accounts/~/extensions/~/comm-handling/states/agent

The ‘agent’ state rule configurations can be retrieved by calling the following API:

GET /restapi/v2/accounts/~/extensions/~/comm-handling/voice/state-rules/agent

To change the rule configurations, call the following API:

PATCH /restapi/v2/accounts/~/extensions/~/comm-handling/voice/state-rules/agent

The 'agent' state can have the following call handling rules:

• Ring settings

Update State Call Handling Rules

Each state's call handling comes with a set of default rules. The most efficient way to configure state call handling rules is to retrieve the current settings from the system, modify the necessary values, and then use the Update State Rules API to apply the changes.

All state call handling rules are defined within the "dispatching" object in the API response. When using the update API, the request body must include the complete set of default rule configurations, even if only a single value is being modified.

The following example code demonstrates how to change the call termination method from "Send to Voicemail" to "Play Announcement" for the 'Forward-All-Calls' state.

const RC = require('@ringcentral/sdk').SDK

// Instantiate the SDK and get the platform instance
var rcsdk = new RC({
    server: 'https://platform.ringcentral.com',
    clientId: 'RC_APP_CLIENT_ID',
    clientSecret: 'RC_APP_CLIENT_SECRET'
});
var platform = rcsdk.platform();

/* Authenticate a user using a personal JWT token */
platform.login({ jwt: 'RC_USER_JWT' })

platform.on(platform.events.loginSuccess, () => {
    read_user_fac_state_rules()
})

platform.on(platform.events.loginError, function(e){
    console.log("Unable to authenticate to platform. Check credentials.", e.message)
    process.exit(1)
});

/*
* Read existing rules
*/
async function read_user_fac_state_rules() {
  try {
    let endpoint = '/restapi/v2/accounts/~/extensions/~/comm-handling/voice/state-rules/forward-all-calls'
    var resp = await platform.get(endpoint)
    var jsonObj = await resp.json()
    await update_user_fac_state_rules(jsonObj.dispatching)
  } catch (e) {
    console.log("Unable to read user FAC state rules. ", e.message);
  }
}

/*
* Update rules with new values
*/
async function update_user_fac_state_rules(dispatching){
  try {
    // Find the "TerminatingAction" object from the dispatching actions list
    let action = dispatching.actions.find(a => a.type == "TerminatingAction")
    if (action){
      // Change the terminating target type
      action.terminatingTargetType = "PlayAnnouncementTerminatingTarget"
      let bodyParams = {
        dispatching: dispatching
      }
      let endpoint = '/restapi/v2/accounts/~/extensions/~/comm-handling/voice/state-rules/forward-all-calls'
      var resp = await platform.patch(endpoint, bodyParams)
      var jsonObj = await resp.json()
      console.log(JSON.stringify(jsonObj, null, 4))
    }
  } catch (e) {
    console.log("Unable to update user FAC state rules. ", e.message);
  }
}

<?php
require('vendor/autoload.php');

// Instantiate the SDK and get the platform instance
$rcsdk = new RingCentral\SDK\SDK( 'RC_APP_CLIENT_ID', 'RC_APP_CLIENT_SECRET', 'https://platform.ringcentral.com' );
$platform = $rcsdk->platform();

/* Authenticate a user using a personal JWT token */
$platform->login(["jwt" => 'RC_USER_JWT']);

read_user_fac_state_rules();

/*
* Read existing rules
*/
function read_user_fac_state_rules() {
  global $platform;
  try {
    $endpoint = "/restapi/v2/accounts/~/extensions/~/comm-handling/voice/state-rules/forward-all-calls";
    $resp = $platform->get($endpoint);
    update_user_fac_state_rules($resp->json()->dispatching);
  }catch (\RingCentral\SDK\Http\ApiException $e) {
    // Getting error messages using PHP native interface
    print 'HTTP Error: ' . $e->getMessage() . PHP_EOL;
    // Another way to get message, but keep in mind, that there could be no response if request has failed completely
    print "Unable to read user FAC state rules. " . $e->apiResponse->response()->error() . PHP_EOL;
  }
}

/*
* Update rules with new values
*/
function update_user_fac_state_rules($dispatching){
  global $platform;
  try {
    // Find the "TerminatingAction" object from the dispatching actions list
    foreach ($dispatching->actions as $action) {
      if (isset($action->type) && $action->type === "TerminatingAction") {
        // Change the terminating target type
        $action->terminatingTargetType = "PlayAnnouncementTerminatingTarget";

        $bodyParams = array( 'dispatching' =>  $dispatching );
        $endpoint = "/restapi/v2/accounts/~/extensions/~/comm-handling/voice/state-rules/forward-all-calls";
        $resp = $platform->patch($endpoint, $bodyParams);
        print_r ($resp->json());
        break;
      }
    }
  }catch (\RingCentral\SDK\Http\ApiException $e) {
    // Getting error messages using PHP native interface
    print 'HTTP Error: ' . $e->getMessage() . PHP_EOL;
    // Another way to get message, but keep in mind, that there could be no response if request has failed completely
    print "Unable to update user FAC state rules. " . $e->apiResponse->response()->error() . PHP_EOL;
  }
}
?>

from ringcentral import SDK
import json

#
# Read existing rules
#
def read_user_fac_state_rules():
    try:
        endpoint = '/restapi/v2/accounts/~/extensions/~/comm-handling/voice/state-rules/forward-all-calls'
        resp = platform.get(endpoint)
        jsonObj = resp.json_dict()
        update_user_fac_state_rules(jsonObj['dispatching'])
    except Exception as e:
        print ("Unable to read user FAC state rules. " + str(e))

#
# Update rules with new values
#
def update_user_fac_state_rules(dispatching):
    try:
        actions = dispatching['actions']
        # Find the "TerminatingAction" object from the dispatching actions list
        action = next((a for a in actions if a.get("type") == "TerminatingAction"), None)
        if action != None:
            # Change the terminating target type
            action['terminatingTargetType'] = "PlayAnnouncementTerminatingTarget"
            bodyParams = {
                'dispatching': dispatching
              }
            endpoint = '/restapi/v2/accounts/~/extensions/~/comm-handling/voice/state-rules/forward-all-calls'
            resp = platform.patch(endpoint, bodyParams)
            jsonObj = resp.json_dict()
            print(json.dumps(jsonObj, indent=2, sort_keys=True))
    except Exception as e:
      print ("Unable to update user FAC state rules. " + str(e))


# Authenticate a user using a personal JWT token
def login():
  try:
      platform.login( jwt= "RC_USER_JWT" )
      read_user_fac_state_rules()
  except Exception as e:
      print ("Unable to authenticate to platform. Check credentials. " + str(e))

# Instantiate the SDK and get the platform instance
rcsdk = SDK("RC_APP_CLIENT_ID", "RC_APP_CLIENT_SECRET", "https://platform.ringcentral.com")
platform = rcsdk.platform()

login()

require 'ringcentral'

#
# Read existing rules
#
def read_user_fac_state_rules()
  begin
    endpoint = '/restapi/v2/accounts/~/extensions/~/comm-handling/voice/state-rules/forward-all-calls'
    resp = $platform.get(endpoint)
    jsonObj = resp.body()
    update_user_fac_state_rules(jsonObj['dispatching'])
  rescue StandardError => e
    puts ("Unable to read user FAC state rules. " + e.to_s)
  end
end

#
# Update rules with new values
#
def update_user_fac_state_rules(dispatching)
  begin
    # Find the "TerminatingAction" object from the dispatching actions list
    action = dispatching['actions'].find { |a| a["type"] == "TerminatingAction" }
    if action
      # Change the terminating target type
      action['terminatingTargetType'] = "PlayAnnouncementTerminatingTarget"
      bodyParams = {
          dispatching: dispatching
        }
      endpoint = '/restapi/v2/accounts/~/extensions/~/comm-handling/voice/state-rules/forward-all-calls'
      resp = $platform.patch(endpoint, payload: bodyParams)
      puts(resp.body)
    end
  rescue StandardError => e
    puts ("Unable to update user FAC state rules. " + e.to_s)
  end
end

# Authenticate a user using a personal JWT token
def login()
  begin
    $platform.authorize( jwt: "RC_USER_JWT" )
    read_user_fac_state_rules()
  rescue StandardError => e
    puts ("Unable to authenticate to platform. Check credentials. " + e.to_s)
  end
end

# Instantiate the SDK and get the platform instance
$platform = RingCentral.new( "RC_APP_CLIENT_ID", "RC_APP_CLIENT_SECRET", "https://platform.ringcentral.com" )

login()

Sample response

{
  "id" : "forward-all-calls",
  "displayName" : "Forward all calls",
  "dispatching" : {
    "actions" : [ {
      "type" : "TerminatingAction",
      "targets" : [ {
        "type" : "VoiceMailTerminatingTarget",
        "name" : "Voicemail",
        "prompt" : {
          "greeting" : {
            "effectiveGreetingType" : "Preset",
            "preset" : {
              "id" : "590080"
            }
          }
        }
      }, {
        "type" : "PlayAnnouncementTerminatingTarget",
        "name" : "PlayAnnouncement",
        "prompt" : {
          "greeting" : {
            "effectiveGreetingType" : "Preset",
            "preset" : {
              "id" : "66560"
            }
          }
        },
        "dispatchingType" : "Terminating"
      }],
      "terminatingTargetType" : "PlayAnnouncementTerminatingTarget"
    } ],
    "type" : "Terminate"
  },
  "state" : {
    "id" : "forward-all-calls",
    "enabled" : true,
    "displayName" : "Forward all calls",
    "conditions" : [ {
      "type" : "Schedule",
      "schedule" : {
        "triggers" : [ {
          "triggerType" : "Daily",
          "startTime" : "00:00:00",
          "endTime" : "23:59:59"
        } ]
      }
    } ]
  }
}
