Calculating Call Time Metrics

Last updated: 2020-07-27 Contributors John Wang
Edit this page

A popular use case for RingCentral APIs is to calculate the amount of time spent in various states in a call, used in the RingCentral system, such as in the analytics dashboard. Popular call component times include:

  1. Ring Time: the amount of time the call is ringing another party, so only one party is connected.
  2. Talk Time: the amount of time when two or more parties are connected (not on hold). Calls with less than half a second of talk time are not recoreded in the RingCentral system.
  3. Hold Time: the amount of time a party is on hold and listening to hold music.

Using Telephony Session Events to Calculate Metrics

Telephony Session Notifications are the recommended way to calculate call time metrics.

When receiving a stream of events, it is important to note the following:

  • All events for a particular call are grouped by the telephonySessionId which is unique per call.
  • All events for a particular call are ordered by the sequence integer property. Events can come in different chronological order so it's important to sequence them properly for analysis.
  • To calculate call metrics like ring, talk, and hold times, it is important to keep track of previous events to sequence them together so you should use a data store to collect events by telephonySessionId and order them by sequence. Then calculate the metrics using the time duration between call status changes using the eventTime and party status.code properties.

The telephonySessionId, sequence and eventTime properties are in the event's body property. The status.code property is in the body's parties array. All of these are shown below.

Subscribing to Telephony Session Events

Here is some information to get started on using Telephony Session Events.

Use the standard subscription approach with either of the following event filters:

Detailed information on the Notification types are available in the API reference.

Information on subscribing to event notifications is available in the Developer Guide.

Call Time Metrics Calculations

Call time metrics are performed by calculating the durations between specific call states as specified by the event status code.

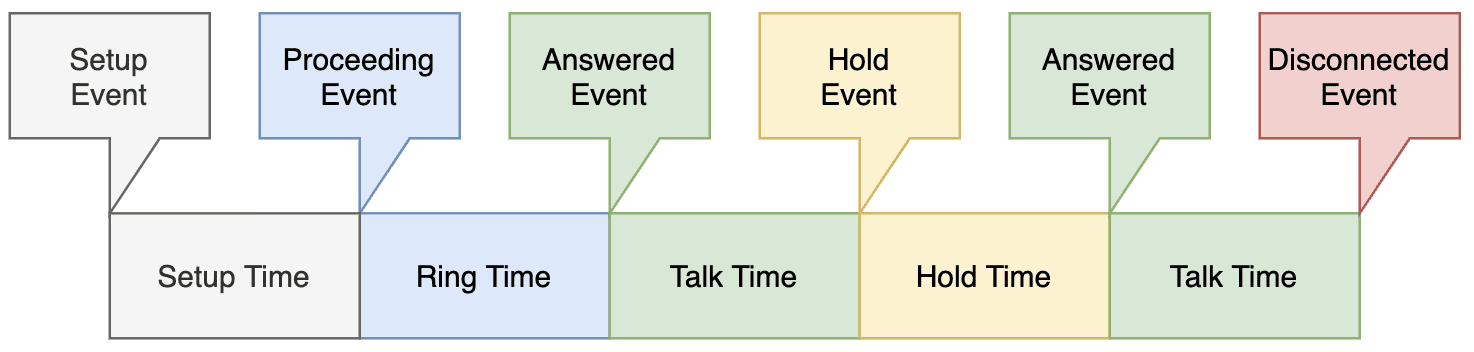

An example time line is shown below:

Time Metric Description Algorithm
Ring Time Ring time is the amount of time a call is spent in the ringing phase before the call parties are connected. Duration begining with Proceeding status and ending with first Answered or Disconnected status.
Talk Time Talk time is the amount of time two or more parties are connected with each other and not on hold. When a user is put on hold, the person hears hold music and is thus not connected. Sum of all durations beginning with Answered status and ending with Hold or Disconnected status
Hold Time Hold time is the amount of time a user is listening to put on hold and lisstening to hold music. Sum of all durations beginning with Hold status and ending with Answered or Disconnected status

Notes:

  1. the status code for "Unhold" is also Answered.
  2. use the eventTime values which are all RFC-3339 date-time values.

See a list of all Status Codes in the Telephony Sesion Notifcations overview page.

Example Events

The following are example events in a call to calculate call time metrics.

Note: these are partial events with most properties removed, to highight the properties needed to caculate various call time metrics.

Ring Time - Proceeding Event

This is a partial event including just the properties relevant for this discussion:

{
  "body":{
    "sequence":5,
    "telephonySessionId":"s-11112222333344445555666677778888",
    "eventTime":"2020-07-17T13:33:50.589Z",
    "parties":[
      {
        "status":{
          "code":"Proceeding"
        }
      }
    ]
  }
}

Ring Time - First Answer Event

This is a partial event including just the properties relevant for this discussion:

{
  "body":{
    "sequence":6,
    "telephonySessionId":"s-11112222333344445555666677778888",
    "eventTime":"2020-07-17T13:33:52.574Z",
    "parties":[
      {
        "status":{
          "code":"Answered"
        }
      }
    ]
  }
}

Talk Time - Hold Event

This is a partial event including just the properties relevant for this discussion:

{
  "body":{
    "sequence":7,
    "telephonySessionId":"s-11112222333344445555666677778888",
    "eventTime":"2020-07-17T13:33:58.510Z",
    "parties":[
      {
        "status":{
          "code":"Hold"
        }
      }
    ]
  }
}

Talk Time - "Unhold" Event

This is a partial event including just the properties relevant for this discussion:

{
  "body":{
    "sequence":8,
    "telephonySessionId":"s-11112222333344445555666677778888",
    "eventTime":"2020-07-17T13:34:00.443Z",
    "parties":[
      {
        "status":{
          "code":"Answered"
        }
      }
    ]
  }
}

Talk Time - Disconnected Event

This is a partial event including just the properties relevant for this discussion:

{
  "body":{
    "sequence":9,
    "telephonySessionId":"s-11112222333344445555666677778888",
    "eventTime":"2020-07-17T13:34:02.098Z",
    "parties":[
      {
        "status":{
          "code":"Disconnected"
        }
      }
    ]
  }
}

Current limitations of Telephony Session Notifications.

In our initial implementation notification won't be delivered in the following scenarios:

  • if a party doesn't belong to subscriber account/extension (another RC account, PSTN, intermediate parties, etc).
  • if a party belongs to another session (transferred call, conference, etc).
  • if a party does not belong to any accountId or mailboxId (some parties are created to represent intermediate "leg", e.g. to connect telephony session with RC Conference)
