RingCentral RingCX Digital App SDK JavaScript Methods

Last updated: 2024-04-26

Contributors

Edit this page

All RingCentral RingCX Digital App SDK methods are prefixed by SMCC namespace. Sub-namespace(s) may also be present.

Static methods are described using a dot (.), and instance methods are described by a number sign (#).

SMCC

The SMCC namespace contains some regular routines.

SMCC.locale()

Retrieves the locale of the SMCC user.

Returns

The current locale of SMCC user, example: " fr".

Type

String

SMCC.onLoad(callback())

Invokes provided callback when document’s DOM is fully loaded.

Parameters

Name	Description
`callback()`	A callback function that is executed when DOM is loaded.

Returns

The SMCC namespace.

Type

An SMCC namespace instance

SMCC.reload()

Reloads the current page.

Returns

The SMCC namespace.

Type

An SMCC namespace instance

SMCC.url()

Example

  http://domain-test.digital.ringcentral.com/admin/users

Returns

The current URL of the page. It includes the scheme, host, port, params, etc.

Type

String

SMCC.version()

Returns

The current version of the App SDK, example: “ 1.0.rc1”.

Type

String

SMCC.API

SMCC.API namespace provides a way to make requests on REST API easily. Please refer first to REST API documentation for all available methods. The API request user is the same as the current user logged in.

SMCC.API.open(options)

Parameters

Name	Description
`options`	An hash that can contain following options: clientId: The App SDK application key. This option is mandatory to get an access token for current user. Refer to OAuth section for more information.

Returns

An instance of SMCC.API and then request could be performed.

Type

An SMCC.APIinstance.

SMCC.API.[get,post,put,delete](path, parameters)

SMCC.API provides 4 instance methods to reach API: #get, #post, #put & #delete. All of them accept the same arguments. They respectively make a GET, POST, PUT and DELETE request on REST API.

Parameters

Name	Description
`path`	The path of the request (example: "contents"). Note: the first `/` is not mandatory.
`parameters`	The parameters of the request.

Parameters Interpolation

Path could use parameters to be interpolated. Example:

api.get("contents/:id", { id: contentId, baz: "foo" })

Is equivalent to:

api.get("contents/" + contentId, { baz: "foo" })

Parameters that are not interpolated in path are sent as regular parameters (here: baz).

Returns

A promise object.

The return value of SMCC.API.get, SMCC.API.post, etc. methods is a promise. Please refer to SMCC.Promise section for more information.

Here is an example that describes how we can chain API requests:

api.get("contents/:id", { id: contentId }).then(
  function(content) {
    return SMCC.API.get("identities/:id", { id: content["author_id"] });
  },
  function(error) {
    console.debug(error["message"]);
  }
).then(
  function(identity) {

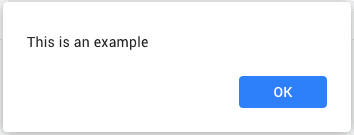

    SMCC.UI.alert(identity["firstname"]);
  },
  function(error) {
    console.debug(error["message"]);
  }
);

Note

The first callback must return the API request.

Example

The following example will make a GET request to /1.0/contents and render the first message’s body in the console.

  var api = SMCC.API.open({ clientId: "53438e23421f49f424000002" });

  api.get("contents").done(function(response) {
    console.debug(response["records"][0]["body"]);
  });

SMCC.API#version([version])

Get or set the API version for provided instance. By default, all API requests are locked to the latest SMCC REST API version (1 .0).

Parameters

Name	Description
`version`	A string that represents the new version to be set. If omitted the current version will be returned.

Returns

Current SMCC API version.

Type

String

Example

Example to get the version:

var api = SMCC.API.open({ clientId: "53438e23421f49f424000002" })

console.debug(api.version());

Example to set the version:

api.version("2.0")

Note

The version is changed only for instance other SMCC.API objects returned via SMCC.API.open method will have default version.

SMCC.Content

The SMCC.Content namespace contains methods to deal with messages.

SMCC.Content.current()

Returns

Returns the instance of the content linked to the currently selected task or null if no task is selected. Returns null when outside of push mode.

Type

A content object or null.

SMCC.Content.mark(options)

The mark method allows parts of message to be marked and action could be performed on it.

Parameters

Name Description

Name	Description
`options`	A hash that contains the following to pass to the method: `name`: A common name of the kind of word marked, example: "customer_id". This option is mandatory. `pattern`: The pattern of the word to replace it should be a regexp, but string is accepted. `replacement`: A function which take the word as argument and returns the replaced value. This option can be omitted to preserve the original value. `onClick(value)`: A function that is invoked when user clicks on marked text. The function is invoked with value as first argument and with content instance as thiscontext.

options

A hash that contains the following to pass to the method:

name: A common name of the kind of word marked, example: "customer_id". This option is mandatory.
pattern: The pattern of the word to replace it should be a regexp, but string is accepted.
replacement: A function which take the word as argument and returns the replaced value. This option can be omitted to preserve the original value.
onClick(value): A function that is invoked when user clicks on marked text. The function is invoked with value as first argument and with content instance as thiscontext.

Returns

Type

SMCC.Content namespace

Example

Here is a complete example:

SMCC.Content.mark({
  name: "customer_id",
  pattern: /#\d{4}/,
  replacement: function(part) {
    return part.replace(/^#/, "");
  },
  on Click: function(value) {
    console.debug("This is client "+ value + "on message with id "+ this.id());
  }
});

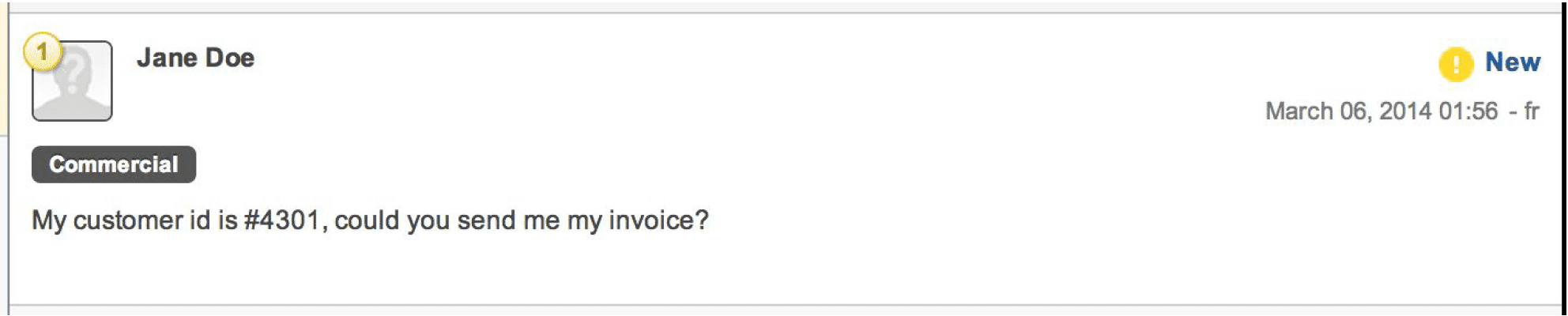

Here is how the message looks like when not marked (ie: when #mark method is not invoked):

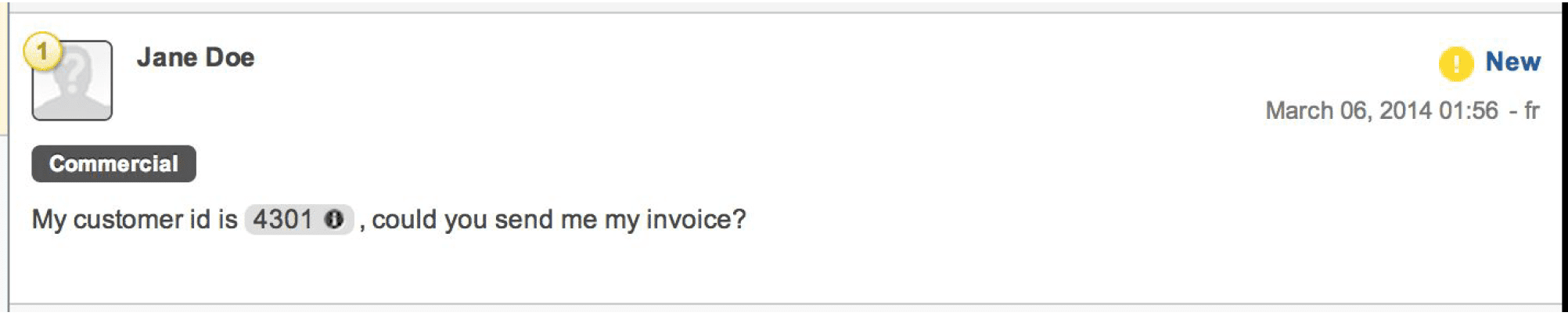

Here is how the message looks like when marked:

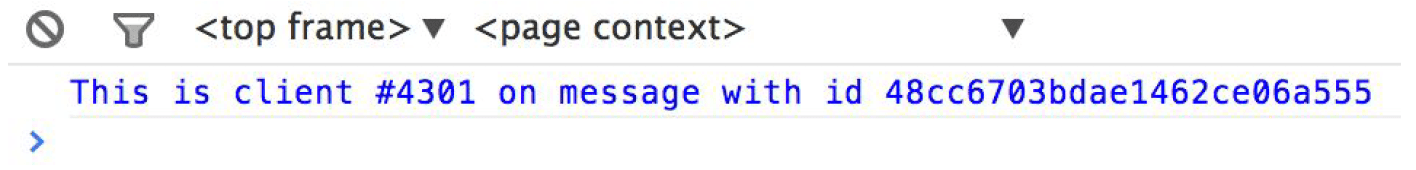

When the customer id is clicked, the message is rendered on the console:

SMCC.Content.onArchive(callback())

Invokes provided callback when a message is archived by an agent.

Parameters

Name	Description
`callback()`	A function that is invoked when message is archived. This function is invoked with archived content instance as `this` context.

Returns

Type

SMCC.Content namespace

Example

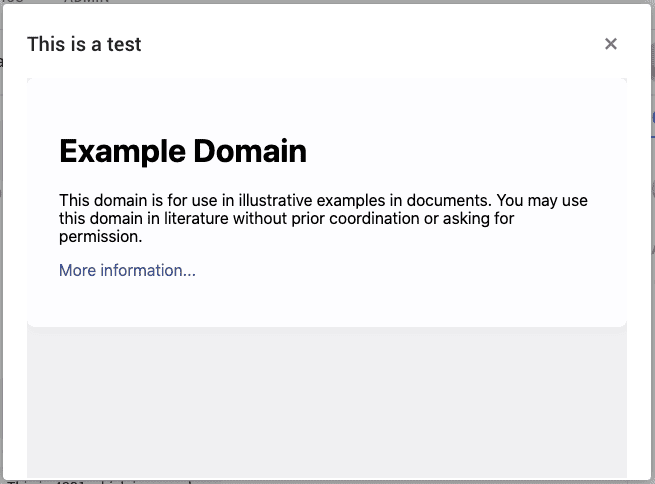

SMCC.Content.onArchive(function() {
  SMCC.Window.open({
    iframeURL: ' http://example.com ?content_id' + this.id(),
    title: 'This is a test'
  });
});

SMCC.Content.onCreate(callback())

Invokes provided callback when a message is created by an agent (a reply or a discussion initiated).

Parameters

Name	Description
`callback()`	A function that is invoked when message is created. This function is invoked with created content instance as `this` context.

Returns

Type

SMCC.Content namespace

SMCC.Content.onExtraActionsShow(callback())

Invokes provided callback when message’s extra actions drop down is displayed.

Parameters

Name	Description
`callback()`	A function that is invoked when extra actions drop down is displayed. This function is
invoked with created content instance as `this` context.

Returns

Type

SMCC.Content namespace

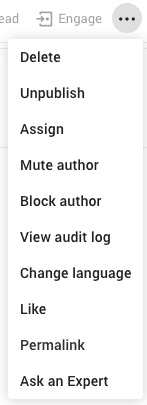

Here is what are extra actions:

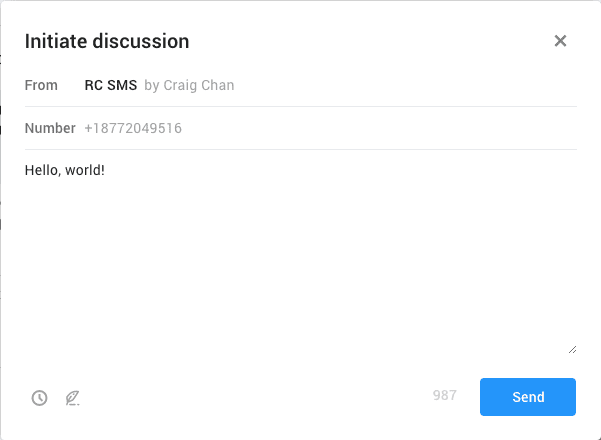

SMCC.Content.onComposeContent(callback())

Invokes provided callback when a content composition is initiated by an agent.

Parameters

Name	Description
`callback()`	A function that is invoked when a discussion is initiated. This function is invoked with
created content instance as `this` context.

Returns

Type

SMCC.Content namespace

SMCC.Content.onReply(callback())

Invokes provided callback when a message is replied by an agent.

Parameters

Name	Description
`callback()`	A function that is invoked when message is replied. This function is invoked with
created content instance as `this` context.

Returns

Type

SMCC.Content namespace

SMCC.Content#addExtraActionButton(options)

This instance method adds an extra action button on message.

Parameters

Name	Description
`options`	An hash that can contain following options: `label`: The label of the button. This option is mandatory. `onClick()`: A callback that is invoked with `SMCC.Content` instance as this
context.

Returns

Type

SMCC.Content instance object

Example

SMCC.Content.onExtraActionsShow(function() {
  this.addExtraActionButton({
    label: "A test button",
    onClick: function() {
      console.debug("Test button clicked on message #" + this.id());
    }
  });
});

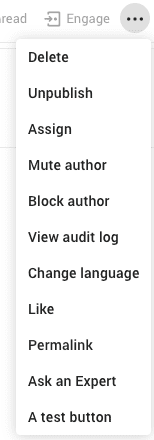

Renders a new test button in the drop down:

SMCC.Content#id()

This instance method returns the id of the message.

Returns

Type

Object ID

SMCC.Content#interventionId()

This instance method returns the ID of the message’s intervention or null when the message is not linked to an intervention.

Returns

Type

An object ID or null.

SMCC.ContentForm

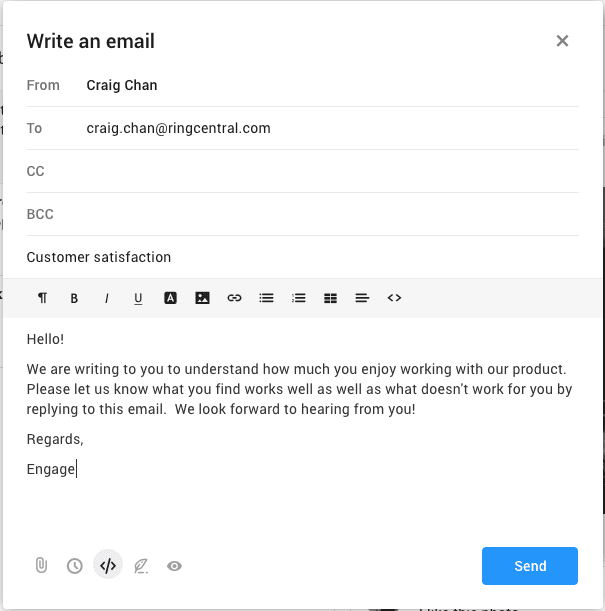

The SMCC.ContentForm namespace contains methods to deal with the message reply form.

SMCC.ContentForm.insert(text)

Insert text at the current cursor position in the message reply form.

Parameters

Name	Description
`text`	A string that contains text to insert in the content body.

SMCC.ContentForm.read()

Fetch the text contained in the message reply form

Returns

The text contained in the message reply form

Type

String

SMCC.ContentForm.insert(text)

Replace content form value by text.

Parameters

Name	Description
`text`	A string that contains text to replace the content body.

SMCC.ContentThread

The SMCC.ContentThread namespace contains methods to deal with message threads.

SMCC.ContentThread.current()

Returns the instance of the thread currently selected or null if no thread is selected. In push mode it will return the thread linked to the current task.

Returns

Type

A thread object or null

SMCC.ContentThread.onCategorize(callback())

Invokes provided callback when a thread is categorized or recategorized by an agent.

Parameters

Name	Description
`callback()`	A function that is invoked when content thread is categorized. This function is
invoked with content thread instance as `this` context.

Returns

Type

SMCC.ContentThread namespace.

SMCC.ContentThread.current()

This instance method returns the id of the thread.

Returns

Type

An object id

SMCC.Id

The SMCC.Id namespace contains methods to deal with object’s IDs.

SMCC.Id.valid(id)

Determines if provided id is valid format or not. Example: “48cc6703bdae1462ce06a555” is valid but “zzba670-bdae1462ce06a555” is not.

Parameters

Name	Description
`id`	A string to check if it is a valid or invalid object’s id.

Returns

Type

Boolean

SMCC.IdentityDetails

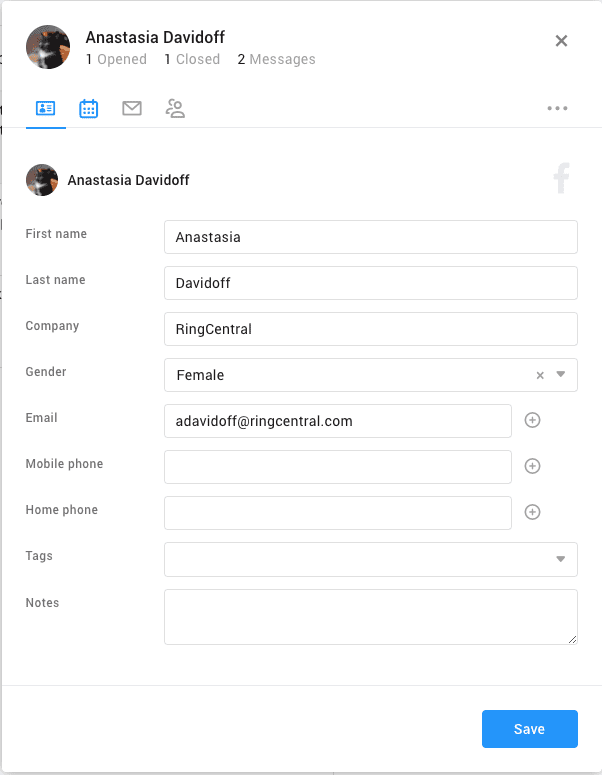

The SMCC.IdentityDetails namespace represents the modal window when an identity is clicked on the UI. Here is an example:

SMCC.IdentityDetails.list()

Returns

Returns an array of visible identity details windows. It returns an empty array if there is no visible identity details window.

Type

Array

SMCC.IdentityDetails.onLoad(callback())

Invokes provided callback when identity details modal window is loaded.

Parameters

Name	Description
`callback()`	A function that is invoked with identity details instance as `this` context. See `addTab` example below for usage.

Returns

Type

SMCC.IdentityDetails namespace

SMCC.IdentityDetails.refreshAll()

Refresh all identity details window.

Returns

Type

SMCC.IdentityDetails namespace

SMCC.IdentityDetails.show(identityId)

Renders the identity details window from the provided identity id.

Parameters

Name	Description
`identityId`	An identity ID.

Returns

Type

SMCC.IdentityDetails namespace

SMCC.IdentityDetails#addTab(options)

This instance method adds a new tab on this identity details modal window with provided options.

Parameters

Name Description

Name	Description
`options`	An option hash that can contain following options: `target`: The target type. Can be set to iframe, popup (opens the link in a popup), or window (opens the link in a new tab or a new window). If missing, a click on the tab will open the url in an iframe. `iframeId`: Used for target: iframe in combination with `SMCC.Window.sendPostMessage`. Only alphanumeric case insensitive and -_ are allowed : ^[A-Za-z0-9-_]+$. Also “parent” is a reserved keyword to send to the parent window. If iframeId is invalid, a new window will still open without the iframe ID set. `url`: The complete url of the target using https. If missing the tab will show a loader until you call setUrl. `icon`: The name of the icon to choose from the list of available icons (remove the prefix “icon-” part). `label`: The label’s text rendered on tab control. `title`: The title’s text (tooltip) rendered on tab control. `width`: If popup is chosen for the target option, the width option will be used. If missing, the popup width will be half of the window width. `height`: If popup is chosen for the target option, the height option will be used. If missing, the popup height will be half of the window height. `default`: Passing true will focus the tab, last inserted tab has priority Note if label and image/icon options aren’t specified a default image is used.

options

An option hash that can contain following options:

target: The target type. Can be set to iframe, popup (opens the link in a popup), or window (opens the link in a new tab or a new window). If missing, a click on the tab will open the url in an iframe.
iframeId: Used for target: iframe in combination with SMCC.Window.sendPostMessage.
- Only alphanumeric case insensitive and -_ are allowed : ^[A-Za-z0-9-_]+$. Also “parent” is a reserved keyword to send to the parent window.
- If iframeId is invalid, a new window will still open without the iframe ID set.
url: The complete url of the target using https. If missing the tab will show a loader until you call setUrl.
icon: The name of the icon to choose from the list of available icons (remove the prefix “icon-” part).
label: The label’s text rendered on tab control.
title: The title’s text (tooltip) rendered on tab control.
width: If popup is chosen for the target option, the width option will be used. If missing, the popup width will be half of the window width.
height: If popup is chosen for the target option, the height option will be used. If missing, the popup height will be half of the window height.
default: Passing true will focus the tab, last inserted tab has priority

Note if label and image/icon options aren’t specified a default image is used.

Returns

A tab object, with a setUrl method that allows to change the URL.

Type

Tab object

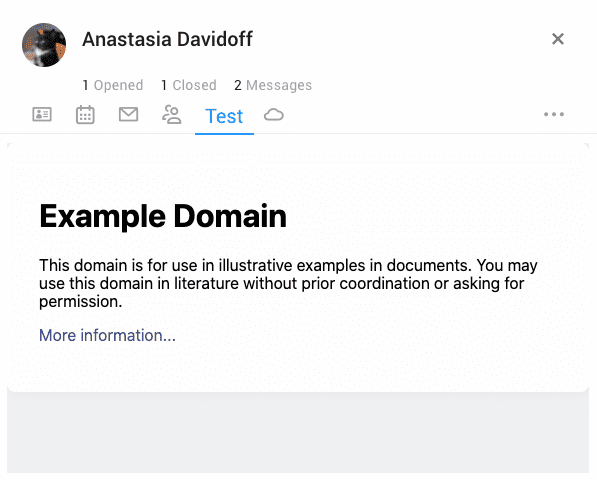

Example

SMCC.IdentityDetails.onLoad(function() {
  this.addTab({
    label: " Test ",
    url: " https://example.com/identity?id= " + this.identityId(),
    iframeId: "crm-integration",
  });
  // or
  var tab = this.addTab({
    label: "Test",
    default: false,
  });
  tab.setUrl(" https://example.com/identity?id= " + this.identityId());
});

SMCC.IdentityDetails#identityGroupId()

This instance method returns the identity group id associated to identity details window.

Returns

Type

Object ID

SMCC.IdentityDetails#identityId()

This instance method returns the identity id associated to identity details window.

Returns

Type

Object ID

SMCC.IdentityDetails#interventionId()

This instance method returns the intervention id associated to identity details window. Actually, this is the intervention of the message associated to identity.

Returns

Type

Object ID

SMCC.IdentityDetails#refresh()

This instance method refresh this identity details window. It reloads entire window HTML.

Returns

Type

SMCC.IdentityDetails instance object

SMCC.Intervention

The SMCC.Intervention namespace contains methods to deal with interventions.

Note

Callbacks for interventions do not work in task mode.

SMCC.Intervention.current()

Returns

Returns the instance of the intervention linked to the currently selected task or null if no task is selected. Returns null when outside of push mode.

Type

Intervention object or null

SMCC.Intervention.onAssign(callback())

Invokes provided callback when an intervention is assigned from an agent to another one.

Parameters

Name	Description
`callback()`	A function that is invoked when intervention is assigned. This function is invoked with
intervention instance as `this` context.

Returns

Type

SMCC.Intervention namespace

Example

SMCC.Intervention.onAssign(function() {
  SMCC.Window.open({
    iframeURL: ' http://example.com ?intervention_id' + this.id(),
    title: 'This is a test'
  });
});

SMCC.Intervention.onCancel(callback())

Invokes provided callback when an intervention is cancelled on a message.

Parameters

Name	Description
`callback()`	A function that is invoked when intervention is cancelled. This function is invoked
with the intervention instance as `this` context.

Returns

Type

SMCC.Intervention namespace

SMCC.Intervention.onClose(callback())

Invokes provided callback when an intervention is closed on a message.

Parameters

Name	Description
`callback()`	A function that is invoked when intervention is closed. This function is invoked with
the intervention instance as `this` context.

Returns

Type

SMCC.Intervention namespace

SMCC.Intervention.onCreate(callback())

Invokes provided callback when an intervention is opened or assigned.

This method is equivalent to: SMCC.Intervention.onAssign(myCallback), SMCC.Intervention.onOpen(myCallback)

Parameters

Name	Description
`callback()`	A function that is invoked when intervention is opened or assigned. This function is
invoked with the intervention instance as `this` context.

Returns

Type

SMCC.Intervention namespace

SMCC.Intervention.onOpen(callback())

Invokes provided callback when an intervention is opened on a message by the current agent.

Parameters

Name	Description
`callback()`	A function that is invoked when intervention is opened. This function is invoked with
the intervention instance as `this` context.

Returns

Type

SMCC.Intervention namespace

SMCC.Intervention#id()

This instance method returns the id of the intervention.

Returns

Type

Object ID

SMCC.Intervention#identityId()

This instance method returns the id of the intervention’s identity.

Returns

Type

Object ID

SMCC.NICE.MAX

The SMCC.NICE.MAX namespace contains methods for the integration of NICE.MAX in ED.

SMCC.NICE.MAX.onPostMessage(callback)

Registers a callback for messages received with postMessage and issuer MAX from an iframe. Use multiple times to register multiple callbacks.

Parameters

Name	Description
`callback`	A callback called when a message from an allowed iframe is received.

Returns

none

Example

SMCC.NICE.MAX.onPostMessage(function(data, origin) {
  console.log(data.text, "received from", origin);
});

Note

Works similarly to: SMCC.Window.onPostMessage(callback)

SMCC.NICE.MAX.registerEvents(subscriptionTypes)

Registers a callback for messages received with postMessage from an iframe.

Parameters

Name Description

Name	Description
`subscriptionTypes`	This is a required array of strings. It is not case sensitive, since everything in the array will be normalized to lowercase. The values in the array are additive. Each option specifies a type of message that you will receive. There are a few possible valid entries: `all`: This will return everything. `agent`: This will return anything that doesn't have a contact ID. `contact`: This will return events limited either by the contact ID requested or the contact ID for the associated panel if the IFrame is connected to a skill or contact. `contacts`: This will return all events that have a contact ID. If you are in a contact panel and want additional information with the panel's contact, add this field. `sessioninfo`: This will return an agent's session token. If you are looking to make agent session specific API calls, register for this event.

subscriptionTypes

This is a required array of strings. It is not case sensitive, since everything in the array will be normalized to lowercase. The values in the array are additive. Each option specifies a type of message that you will receive. There are a few possible valid entries:

all: This will return everything.
agent: This will return anything that doesn't have a contact ID.
contact: This will return events limited either by the contact ID requested or the contact ID for the associated panel if the IFrame is connected to a skill or contact.
contacts: This will return all events that have a contact ID. If you are in a contact panel and want additional information with the panel's contact, add this field.
sessioninfo: This will return an agent's session token. If you are looking to make agent session specific API calls, register for this event.

Note

Array can't be empty.

Returns

none

Example

SMCC.NICE.MAX.registerEvents(["all"]);

SMCC.NICE.MAX.unregisterEvents()

Unregister all callbacks linked to NICE events.

Parameters

none

Returns

none

Example

SMCC.NICE.MAX.unregisterEvents();

SMCC.Promise

SMCC.Promise provides a chainable utility object. Here is a good blog that describes how promises are working. RingCX Digital SMCC App SDK Implementation has been inspired by jQuery.

Let’s start with a complete example:

function asyncEvent() {
  var deferred = SMCC.Promise.deferred();

  // Resolve after a random interval
  setTimeout(function() {
    deferred.resolve("hurray");
  }, Math.floor(400 + Math.random() * 2000));

  // Reject after a random interval
  setTimeout(function() {
    deferred.reject("sorry");
  }, Math.floor(400 + Math.random() * 2000));

  // Return the promise so caller can't change the Deferred
  return deferred.promise();
}

// Invokes the asyncEvent function and add two callbacks: one for
// when resolved, the other one when rejected.
asyncEvent().then(
  function(status) {
    console.debug(status + ", things are going well" );
  },
  function(status) {
    console.debug(status + ", you fail this time" );
  }
);

SMCC.Promise.deferred()

Returns

Returns a new deferred object.

Type

deferred object

deferred#promise()

Returns

Returns a new promise object, so the caller can't change the deferred.

Type

promise object

deferred#reject([args])

Invokes attached fail callback.

Parameters

As many arguments you want. Those arguments are forwarded to fail callback.

Returns

Type

This deferred object

deferred#resolve([args])

Invokes attached done callback.

Parameters

As many arguments you want. Those arguments are forwarded to done callback.

Returns

Type

This deferred object

promise#done(callback[args])

Attaches a done callback to this promise.

Parameters

Name	Description
`callback([args])`	A callback that accepts as many arguments as described in `deferred#resolve()`.

Returns

Type

This promise object

promise#fail(callback)

Attaches a fail callback to this promise.

Parameters

Name	Description
`callback([args])`	A callback that accepts as many arguments as described in `deferred#reject()`.

Returns

Type

This promise object

promise#then(doneCallback[ , failCallback])

Attaches a done and an optional fail callback to this promise. #then method could be chained.

Parameters

Name	Description
`doneCallback([args])`	A callback that accepts as many arguments as described in `deferred#resolve()`.
`failCallback([args])`	A callback that accepts as many arguments as described in `deferred#reject()`.

Returns

Type

This promise object

SMCC.Task

The SMCC.Task namespace contains methods to deal with tasks.

SMCC.Task.current()

Returns

Returns the instance of the currently selected task or null if no task is selected. Returns null when outside of push mode.

Type

A task object or null

SMCC.Task#id()

Returns

This instance method returns the ID of the task.

Type

Object ID

SMCC.Task.accept(taskId)

Accept the ringing task with the id matching the argument taskId.

Parameters

Name	Description
`taskId`	The id of the task to accept.

Returns

Type

An object ID or null

SMCC.Task.onComplete(callback)

Invokes provided callback when a task is completed by the current agent.

Parameters

Name	Description
`callback()`	A function that is invoked when intervention is closed. This function is invoked with intervention instance as `this` context. In the callback, `this.action()` will give the name corresponding the triggered action. The action can be "delete_scheduled", "close", "publish", "unpublish", "complete", "deferred", "destroyed" or "archive".

Returns

Type

SMCC.Task namespace

SMCC.UI

The SMCC.UI namespace contains utility methods to deal with user interface.

SMCC.UI.alert(message[, options])

Renders a message like standard javascript alert function.

Parameters

Name	Description
`message`	The message that is displayed on dialog window.
`options`	An hash containing some options: `onClose()`: A callback that is invoked when dialog window is closed. `onSuccess(value)`: A callback that is invoked when agent clicks on OK button. Note: onClose() callback is also invoked when dialog is OK button is clicked.

Returns

Type

SMCC.UI namespace

Example

SMCC.UI.alert("This is an example");

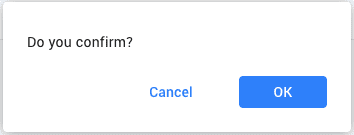

SMCC.UI.confirm(message[, options])

Renders a message and ask agent confirmation like standard javascript confirm function.

Parameters

Name	Description
`message`	The message that is displayed on dialog window.
`options`	An hash containing some options: `onClose()`: A callback that is invoked when confirm dialog window is closed. `onConfirm()`: A callback that is invoked when agent clicks on OK button. Note: onClose() callback is also invoked when dialog is OK button is clicked.

Returns

Type

SMCC.UI namespace

Example

SMCC.UI.confirm("Do you confirm?", {
  onConfirm: function() {
    // DO SOMETHING HERE
  }
})

SMCC.UI.composeContent()

Renders the compose window for the current agent to create a new content.

Parameters

Name Description

Name	Description
`options`	An optional hash containing some options: `sourceId`: If this option is present, the compose window of the specified source will be open. Otherwise a source selection popup will be shown. (optional) `categoryIds`: An array of categoryIds which will be used for reply assistant entries filtering. (optional) `to`: The message recipient, if available for the source. (optional) `cc`: The message copied recipient, if available for the source. (optional) `bcc`: The message hidden recipient, if available for the source. (optional) `title`: The message title, if available for the source. (optional) `body`: The message body. (optional)

options

An optional hash containing some options:

sourceId: If this option is present, the compose window of the specified source will be open. Otherwise a source selection popup will be shown. (optional)
categoryIds: An array of categoryIds which will be used for reply assistant entries filtering. (optional)
to: The message recipient, if available for the source. (optional)
cc: The message copied recipient, if available for the source. (optional)
bcc: The message hidden recipient, if available for the source. (optional)
title: The message title, if available for the source. (optional)
body: The message body. (optional)

Returns

none

Example

SMCC.UI.composeContent();

SMCC.UI.composeContent({
  sourceId: '5af07f3cccc9ac2954237908',
  categoryIds: ['5a958fa47a8beb0ff47e2db7'],
  to: '+33123456789',
  body: 'Hello, world!'
});

SMCC.UI.executeSearch(query)

Execute a search on contents.

Parameters

Name	Description
`query`	The query to execute formatted “attribute: value”. A composed search can be executed by joining multiple.

Returns

Type

SMCC.UI namespace

Example

SMCC.UI.executeSearch('active_and_assigned: true')
SMCC.UI.executeSearch('active_and_assigned: true categorized: true')

SMCC.UI.flashMessage(message[, options])

Opens a flash message.

Parameters

Name	Description
`message`	The message that is displayed on the flash message.
`options`	A hash containing some options: `sticky`: The message persists if set to true `type`: The type of message. notice by default `delay`: The display time in ms `workerId`: The id of a worker to have a link to the corresponding job

Returns

Type

SMCC.UI namespace

Example

SMCC.UI.flashMessage(‘Message’, { delay: 500 })

SMCC.UI.openAdvancedSearch(options)

Opens the advanced search modal box.

Parameters

Name	Description
`options`	A hash containing some options: `search`: The initial search when the modal box is open. The format of the search input has to be used as “text: <some text> source: <sourceId>”.

Returns

none

Example

SMCC.UI.openAdvancedSearch({ c })

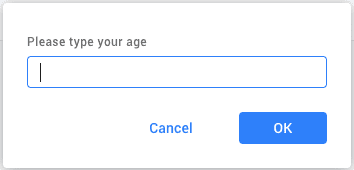

SMCC.UI.prompt(message[, options])

Prompts to input text.

Parameters

Name Description

message The message that is displayed on dialog window.

options

A hash containing some options:

onClose(): A callback that is invoked when the window is closed.
onSuccess(value): A callback that is invoked when an agent clicks on OK button.
validate(callback(value)): A callback that is invoked when an agent clicks on OK button. This callback is invoked with input value as first argument. It should return true if input value is correct. If input value is incorrect, it must return an error message has string.
value: An optional pre-filled value.

Note: onClose() callback is also invoked when the dialog’s OK button is clicked.

Returns

Type

SMCC.UI namespace

Example

SMCC.UI.prompt('Please type your age', {
  onSuccess: function(value) {
    // DO SOMETHING HERE
  },
  validate: function(value) {
    return value.match(/^\d+$/) ? true : ('Invalid age: ' + value);
  }
})

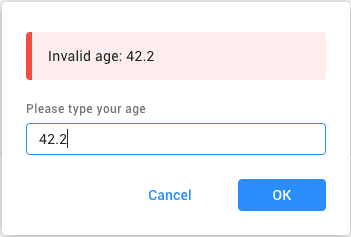

On invalid entry:

SMCC.Window

The SMCC.Window namespace represents a modal window that can be rendered from any page, example:

SMCC.Window.acceptPostMessageOrigin(origin)

Allows RingCentral RingCX to receive messages from origin. Use multiple times to allow many origins.

Parameters

Name	Description
`hostname`	A string which is the origin.

Returns

none

Example

SMCC.Window.acceptPostMessageOrigin("https://www.google.com");

SMCC.Window.onPostMessage(callback)

Registers a callback for messages received with postMessage from an iframe. Use multiple times to register many callbacks.

Parameters

Name	Description
`callback`	A callback called when a message from an allowed iframe is received.

Returns

none

Example

SMCC.Window.onPostMessage(‘foo’, function(data, origin) {
  console.log(data.text, “received from”, origin);
});

Note

The origin has to be whitelisted with SMCC.Window.acceptPostMessageOrigin(“origin_hostname”) to receive messages in RingCentral RingCX. More info in the iframe section.

SMCC.Window.sendPostMessage(iframeId, namespace, message)

Send a postMessage to iframe.

Parameters

Name	Description
`iframeId`	Iframe to target. If `iframeId` is the keyword "parent", it will send a `postMessage` to the parent window.
`namespace`	Identify postMessage. Namespace is always prefixed with -> smcc: `window:open -> smcc:window:open`

Returns

Type

SMCC.Window namespace

Example

SMCC.Window.sendPostMessage('crm-integration', 'window:open',{ testContent: 'Ring' });

SMCC.Window.open(options)

Opens a new window with provided options.

Parameters

Name Description

Name	Description
`options`	An hash that can contain following options: `target`: The target type. Can be set to iframe, popup(opens the link in a popup), or window(opens the link in a new tab or a new window). If missing, a click on the button will open the url in an iframe. `iframeId`: Used for target: iframe in combination with `SMCC.Window.sendPostMessage`. Only alphanumeric case insensitive and -_ are allowed : `^[A-Za-z0-9-_]+$`. Also “parent” is a reserved keyword to send to the parent window. If iframeId is invalid, a new window will still open without the iframe ID set. `url`: The complete url of the target using https. If missing the window will be empty. `title`: The title of the window. `width`: If popup or iframe is chosen for the target option, the width option will be used. `height`: If popup or iframe is chosen for the target option, the height option will be used. `modal`: If set to false, the popup can be opened with other popup. Default to true.

options

An hash that can contain following options:

target: The target type. Can be set to iframe, popup(opens the link in a popup), or window(opens the link in a new tab or a new window). If missing, a click on the button will open the url in an iframe.
iframeId: Used for target: iframe in combination with SMCC.Window.sendPostMessage.
- Only alphanumeric case insensitive and -_ are allowed : ^[A-Za-z0-9-_]+$. Also “parent” is a reserved keyword to send to the parent window.
- If iframeId is invalid, a new window will still open without the iframe ID set.
url: The complete url of the target using https. If missing the window will be empty.
title: The title of the window.
width: If popup or iframe is chosen for the target option, the width option will be used.
height: If popup or iframe is chosen for the target option, the height option will be used.
modal: If set to false, the popup can be opened with other popup. Default to true.

Returns

Type

SMCC.Window instance

Example

SMCC.Window.open({
  iframeURL: 'https://example.com',
  title: 'This is a test',
  iframeId: 'crm-integration',
});

SMCC.Window.close()

Closes all the windows previously opened with SMCC.Window.open().

Returns

Type

SMCC.Window namespace

SMCC.Window#close()

Closes the SMCC.Window instance on which the method is called.

Example

window = SMCC.Window.open({
  iframeURL: 'https://example.com',
  title: 'This is a test'
});
window.close();

SMCC.User

The SMCC.User namespace contains methods to deal with agents.

SMCC.User.current()

Returns

Returns the current user logged in instance or nil if not authenticated.

Type

SMCC.User object or null

SMCC.User#id()

Returns

This instance method returns the user’s id.

Type

Object ID

SMCC.Utils

The SMCC.Utils namespace contains general utilities method, including those needed to deal with URL encoding.

SMCC.Utils.decodeURI()

See documentation at decodeURI()

SMCC.Utils.decodeURIComponent()

See documentation at decodeURIComponent()

SMCC.Utils.encodeURI()

See documentation at encodeURI()

SMCC.Utils.encodeURIComponent()

See documentation at decodeURIComponent()
