About Rich Link Structured Message

Last updated: 2024-04-17

Contributors

This structured message allows to decorate a link with an image, title and subtitle. See Channel capabilities to know on which channel you can use this structured message.

Request Example

curl -X POST "https://[YOUR DOMAIN].api.digital.ringcentral.com/1.0/contents"

{
  "source_id": "<source_id>",
  "in_reply_to_id": "<in_reply_to_id>",
  "structured_content": {
    "type": "rich_link",
    "attachment_id": "<attachment_id>",
    "attachment_fallback_id": "<attachment_id>",
    "title": "Ringcentral, Inc.",
    "subtitle": "Cloud Business Communications",
    "url": "github://github.com/ringcentral",
    "url_fallback": "https://github.com/ringcentral",
    "url_text": "Github"
  }
}

Primary Parameters

API Property	Type	Description
`source_id`	String	Optional. ID of the source. Most interactions are in reply to a message being sent to the agent. In these cases, the source ID is not required.
`in_reply_to_id`	String	ID of the message being replied to.
`structured_content`	Object	Payload of the structured message.
Structured Content Settings
`structured_content.type`	String	Type of the structured message. Must be "rich_link".
`structured_content.url`	String	Url of the rich link. Limited to 2048 characters. Should only have http and https schemes. If the device does not support structured messages, this field will be sent as the message.
`structured_content.url_fallback`	String	Optional. Fallback in case the url is invalid. Limited to 2048 characters. Only http and https schemes.
`structured_content.url_text`	String	Optional. Text that will be displayed instead of the hostname of the url. Automatically gets populated as the hostname of the url if blank. Limited to 80 characters.
`structured_content.title`	String	Title of the rich link. Limited to 350 characters.
`structured_content.subtitle`	String	Optional. Subtitle of the rich link. Limited to 1000 characters.
`structured_content.attachment_id`	String	Optional. Existing attachment id used to decorate the rich link with an image. Should be public. Should be jpg, jpeg or png. Should be less than 5MB. Upload attachments for you own custom images.
`structured_content.attachment_fallback_id`	String	Optional. Fallback in case the attachment related to the attachment_id doesn’t meet the source requirements. Must be public. Only jpg, jpeg, png formats. Maximum size of 5 MB. Upload attachments for you own custom images.

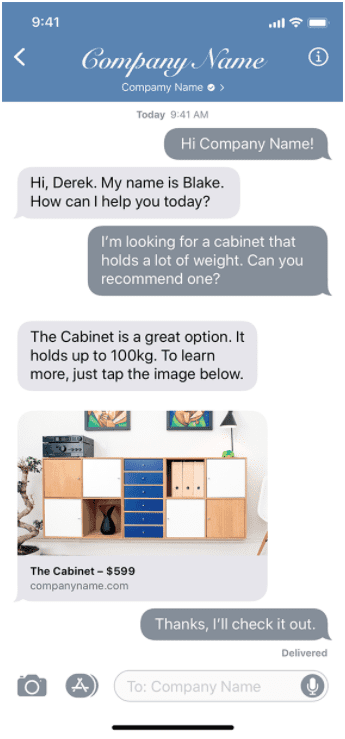

Example: Apple Messages for Business - Rich Link

Properties Unique to this Channel

Primary parameters are used by default, however, some parameters are unique or overwritten by parameters specific to this example.

API Property	Type	Description
`structured_content.title`	String	Truncated to 200 characters.
`structured_content.attachment_id`	String	Supports jpg, jpeg, png, and mp4 formats. Supports private attachments. Supports up to 300MB. Upload attachments for you own custom images.
`structured_content.url_text`	String	Ignored property.
`structured_content.subtitle`	String	Ignored property.

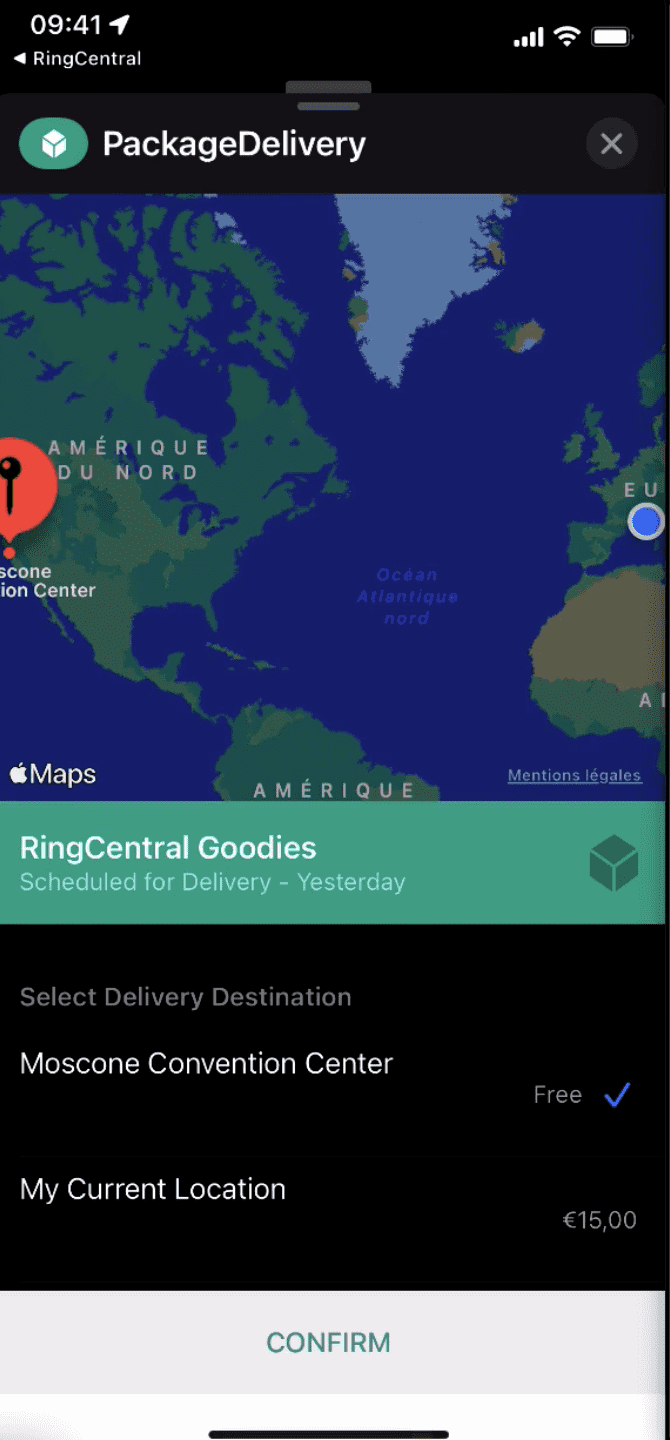

Example: Apple Messages for Business - iMessage App

Rich Link structured messages can be used to create iMessage apps.

Properties Unique to this Channel

Primary parameters are used by default, however, some parameters are unique or overwritten by parameters specific to this example.

API Property	Type	Description
`structured_content.url`	String	A URL string containing data that the Messages app sends to the iMessage app. It must start with '?'
`structured_content.app_id`	String	The App Store identifier of the iMessage app.
`structured_content.app_name`	String	The name of the iMessage app.
`structured_content.app_icon`	String	A Base64-encoded string representing the app icon of the iMessage app.
`structured_content.bid`	String	The bundle identifier of the iMessage app. Must start with 'com.apple.messages.MSMessageExtensionBalloonPlugin:'
`structured_content.subtitle`	String	Optional. Subtitle of the rich link.
`structured_content.use_live_layout`	String	Optional. A Boolean that determines whether the Messages app should use Live Layout. The default is true.
`structured_content.url_text`	String	Ignored property.
`structured_content.attachment_id`	Ignored property.

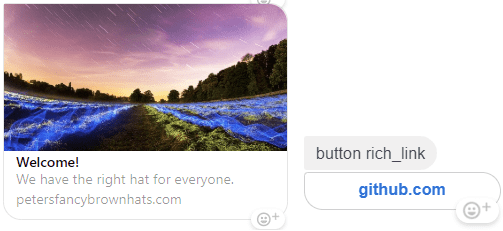

Example: Facebook Messenger

Facebook Messenger does not natively support rich links. So a rich link can either be converted to a Generic Template or a Button Template:

If the subtitle and the attachment_id are blank, the rich link will become a Button Template in Facebook Messenger with a single button being a "url button" that will redirect to the rich link url. The url_text will be the title of the button.
Otherwise, the rich link will become a Generic Template in Facebook Messenger with no buttons.

Properties Unique to this Channel

Primary parameters are used by default, however, some parameters are unique or overwritten by parameters specific to this example.

API Property	Type	Description
`structured_content.attachment_id`	String	Supports bmp, gif, jpg, jpeg, png formats. Supports private attachments. Upload attachments for you own custom images.
`structured_content.url_text`	String	Ignored property when converted to a Generic Template. Truncated to 20 characters when converted to a Button Template.
`structured_content.title`	String	Truncated to 80 characters.
`structured_content.subtitle`	String	Truncated to 80 characters.

Example: RingCX Messaging

Properties Unique to this Channel

Primary parameters are used by default, however, some parameters are unique or overwritten by parameters specific to this example.

API Property	Specificity
`structured_content.attachment_id`	Supports bmp, gif, jpg, jpeg, png formats. Supports private attachments. Upload attachments for you own custom images. On RingCX Messaging Web, if the width of the image is bigger than the height, it will be displayed with a 5:3 ratio. Otherwise, a 1:1 ratio will be used. Minimal recommended size with a 1:1 ratio: 258x258 Minimal recommended size with a 5:3 ratio: 258x155
`structured_content.url`	Deep links are supported.
`structured_content.target`	Optional. Ignored when the `url` is empty. Behavior applied when clicking on the url. Can be webview to open url on a webview above the chat, `open` to open url in new tab, or `current` to open url in current tab. Defaults to open when not specified. On iOS and Android, `current` value opens a full sized webview.
`structured_content.webview_height`	Optional. Ignored when `target` is other than `webview`. Size of the webview used to open the link. Can be `full`, `tall` or `compact`. Defaults to `full` if unset.

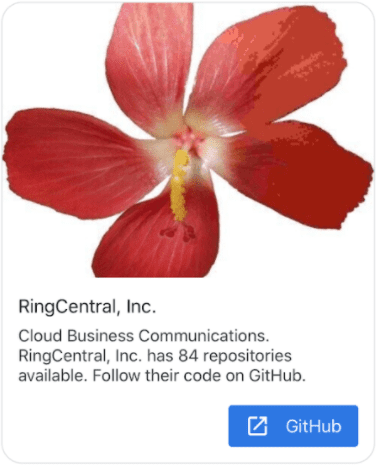

Example: Google Business Messages

Google Business Messages does not natively support rich links. That’s why the rich link is converted to a Rich Card and the link is converted to a single button that will redirect to the url when clicked. The url_text property is used to display the title of the button.

Properties Unique to this Channel

Primary parameters are used by default, however, some parameters are unique or overwritten by parameters specific to this example.

API Property	Specificity
`structured_content.title`	Truncated to 200 characters.
`structured_content.url_text`	Truncated to 25 characters.
`structured_content.attachment_id`	Supports private attachments.

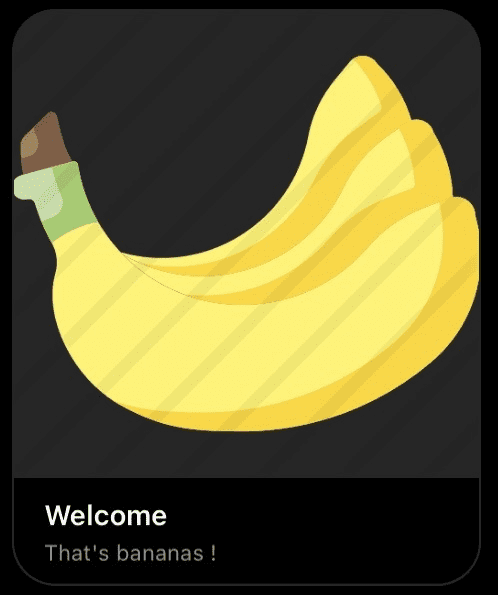

Example: Instagram Messaging

Instagram Messaging does not natively support rich links. So a rich link can be converted to a Generic Template

Properties Unique to this Channel

Primary parameters are used by default, however, some parameters are unique or overwritten by parameters specific to this example.

API Property	Specificity
`structured_content.attachment_id`	Supports bmp, gif, jpg, png formats. Supports private attachments. Upload attachments for you own custom images.
`structured_content.url_text`	Truncated to 20 characters.
`structured_content.title`	Truncated to 80 characters.
`structured_content.subtitle`	Truncated to 80 characters.
